Description

Le profil BECA 008P Piston est une bague anti-extrusion coupée à 30° dont sa forme concave permet de parfaitement épouser le joint torique, La bague est systématiquement montée en tandem avec un joint torique ou un joint quadrilobes (X-Ring), Il est possible de réaliser ce profil non coupé.

Avantages

Utilisation en statique et en dynamique
Utilisation pour des mouvements alternatifs possible
Large surface de contact protégeant le joint torique contre la déformation due à des pressions pulsées
Montage préférentiel en gorge fermée pour les profils coupés à 30°
Montage en gorge ouverte pour les profils non coupés

Données techniques

Température

-200°C / +260°C

Pression

< 250 MPa en statique
< 20 MPa en alternatif

Vitesse

2 m/s en alternatif

Fluides en contact

La majorité des fluides liquides, gazeux ou produits chimiques selon le type de matériau choisi. Se référer à notre guide de compatibilité fluides-matériaux.

Applications

Automobile
Equipements hydrauliques
Hydraulique mobile
Machines-outils
Presses à injecter
Vannes
Vérins hydrauliques

Matériaux

PTFE vierge en standard
PTFE chargé (fibres de verre, carbone, bronze)
Autres matériaux possibles

Dimensions
Matériaux
Préconisation de conception

Dimensions

008.006034, 008.006038, 008.008058, 008.010078, 008.012009, 008.012094, 008.014011, 008.014114, 008.015124, 008.016013, 008.016134, 008.018154, 008.020017, 008.020174, 008.022019, 008.022194, 008.025022, 008.025224, 008.028234, 008.028024, 008.030254, 008.030026, 008.032274, 008.035304, 008.035031, 008.040354, 008.042374, 008.042038, 008.045040, 008.045041, 008.048418, 008.048426, 008.050438, 008.050446, 008.052458, 008.052466, 008.055488, 008.055496, 008.060538, 008.060546, 008.063568, 008.063576, 008.065588, 008.065596, 008.070638, 008.070646, 008.075688, 008.075696, 008.080738, 008.080746, 008.085788, 008.085796, 008.090814, 008.090082, 008.095864, 008.095087, 008.100914, 008.100092, 008.105964, 008.105097, 008.110101, 008.110102, 008.115106, 008.115107, 008.120111, 008.120112, 008.125116, 008.125117, 008.130121, 008.130122, 008.135123, 008.140128, 008.150138, 008.160148, 008.170158, 008.180168, 008.190178, 008.200188, 008.210198, 008.220208, 008.230218, 008.240228, 008.250238, 008.280268, 008.300288, 008.320308, 008.350338, 008.400388, 008.420408, 008.450438, 008.480468, 008.500488

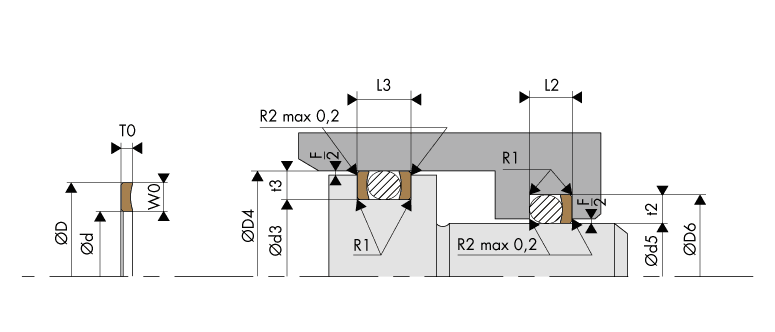

Schéma d'implantationLogement Gorge Bague anti-extrusion - Housing Groove Back-up ring - BECA 008P

Matériaux

Le tableau ci-dessous indique les principaux matériaux qu'il est possible d'envisager pour la réalisation de bagues anti-extrusion type BECA 008 P.

Matériaux Code
PTFE Vierge P
PTFE chargé Fibres de verre V
PTFE chargé Bronze B
PTFE chargé Carbone C
Polyuréthane 93 Shore A / 96 Shore D U
PEEK T
Résine acétale POM H
Polyamide PA D

Préconisation de conception

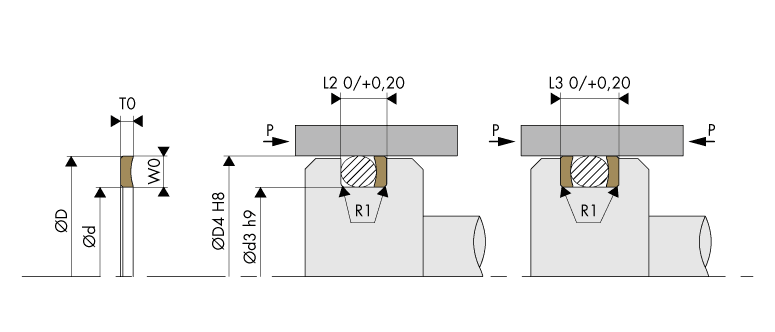

Logement Gorge - BECA 008P Piston

Cote de montage en applications statique et dynamique - Etanchéité extérieure (Cylindre) uniquement.

Joint torique Bague anti-extrusion Dimensions du logement Rayon
Diamètre de tore
Ød2
Hauteur radiale
W0
Epaisseur Etanchéité de cylindre Largeur de gorge
Diamètre de gorge
Ød3 h9
Statique Dynamique
statique dynamique T0 statique dynamique L2 0/+0,20 L3 0/+0,20 L2 0/+020 L3 0/+0,20 R1 ±0,20
1,50 1,10 1,10 1,00 D4 - 2,20 D4 - 2,20 3,20 4,20 3,25 4,25 0,25
1,60 1,15 1,20 1,00 D4 - 2,30 D4 - 2,40 3,50 4,50 3,40 4,40 0,25
1,78 1,30 1,35 1,40 D4 - 2,60 D4 - 2,70 4,10 5,50 4,00 5,40 0,25
1,80 1,30 1,35 1,40 D4 - 2,60 D4 - 2,70 4,10 5,50 4,00 5,40 0,25
2,00 1,50 1,55 1,40 D4 - 3,00 D4 - 3,10 4,30 5,70 4,20 5,60 0,25
2,40 1,80 1,90 1,40 D4 - 3,60 D4 - 3,80 4,80 6,20 4,60 6,00 0,25
2,50 1,90 1,95 1,40 D4 - 3,80 D4 - 3,90 4,90 6,30 4,80 6,20 0,25
2,62 2,00 2,05 1,40 D4 - 4,00 D4 - 4,10 5,00 6,40 4,90 6,30 0,25
2,65 2,00 2,10 1,40 D4 - 4,00 D4 - 4,20 5,10 6,50 4,90 6,30 0,25
3,00 2,30 2,40 1,40 D4 - 4,60 D4 - 4,80 5,90 7,30 5,70 7,10 0,25
3,53 2,70 2,85 1,40 D4 - 5,40 D4 - 5,70 6,50 7,90 6,30 7,70 0,25
3,55 2,70 2,90 1,40 D4 - 5,40 D4 - 5,80 6,60 8,00 6,30 7,70 0,25
4,00 3,10 3,25 1,40 D4 - 6,20 D4 - 6,50 7,00 8,40 6,80 8,20 0,25
5,00 4,00 4,10 1,70 D4 - 8,00 D4 - 8,20 8,40 10,10 8,30 10,00 0,25
5,30 4,30 4,40 1,70 D4 - 8,60 D4 - 8,80 8,60 10,30 8,50 10,20 0,25
5,33 4,30 4,40 1,70 D4 - 8,60 D4 - 8,80 8,80 10,50 8,50 10,20 0,25
5,70 4,60 4,80 1,70 D4 - 9,20 D4 - 9,60 9,10 10,80 8,80 10,50 0,25
6,00 4,90 5,10 1,70 D4 - 9,80 D4 - 10,20 9,50 11,20 9,10 10,80 0,25
6,99 5,80 5,90 2,50 D4 - 11,60 D4 - 11,80 11,80 14,30 11,70 14,20 0,25
8,00 6,70 7,00 2,50 D4 - 13,40 D4 - 14,00 12,70 15,20 12,40 14,90 0,25
8,40 7,10 7,30 2,50 D4 - 14,20 D4 - 14,60 13,00 15,50 12,80 15,30 0,25
92 dimensions trouvées
008.006034
Demande standard
6,0 x 1,3 x 1,4 6,00 3,40 4,10 5,50 0,25 010.1A039 2,90 x 1,78
008.006038
Demande standard
6,0 x 1,1 x 1,0 6,00 3,80 3,20 4,20 0,25 010.1B165 3,50 x 1,50
008.008058
Demande standard
8,0 x 1,1 x 1,0 8,00 5,80 3,20 4,20 0,25 010.1B180 5,50 x 1,50
008.010078
Demande standard
10,0 x 1,1 x 1,0 10,00 7,80 3,20 4,20 0,25 010.1B189 7,50 x 1,50
008.012009
Demande standard
12,0 x 1,5 x 1,4 12,00 9,00 4,30 5,70 0,25 010.1B487 8,50 x 2,00
008.012094
Demande standard
12,0 x 1,3 x 1,4 12,00 9,40 4,10 5,50 0,25 010.1A048 9,25 x 1,78
008.014011
Demande standard
14,0 x 1,5 x 1,4 14,00 11,00 4,30 5,70 0,25 010.1B492 10,00 x 2,00
008.014114
Demande standard
14,0 x 1,3 x 1,4 14,00 11,40 4,10 5,50 0,25 010.1A050 10,82 x 1,78
008.015124
Demande standard
15,0 x 1,3 x 1,4 15,00 12,40 4,10 5,50 0,25 010.1A052 12,42 x 1,78
008.016013
Demande standard
16,0 x 1,5 x 1,4 16,00 13,00 4,30 5,70 0,25 010.1B498 12,00 x 2,00
008.016134
Demande standard
16,0 x 1,3 x 1,4 16,00 13,40 4,10 5,50 0,25 010.1A053 14,00 x 1,78
008.018154
Demande standard
18,0 x 1,3 x 1,4 18,00 15,40 4,10 5,50 0,25 010.1A054 15,60 x 1,78
008.020017
Demande standard
20,0 x 1,5 x 1,4 20,00 17,00 4,30 5,70 0,25 010.1B519 16,00 x 2,00
008.020174
Demande standard
20,0 x 1,3 x 1,4 20,00 17,40 4,10 5,50 0,25 010.1A055 17,17 x 1,78
008.022019
Demande standard
22,0 x 1,5 x 1,4 22,00 19,00 4,30 5,70 0,25 010.1B519 16,00 x 2,00
008.022194
Demande standard
22,0 x 1,3 x 1,4 22,00 19,40 4,10 5,50 0,25 010.1A056 18,77 x 1,78
008.025022
Demande standard
25,0 x 1,5 x 1,4 25,00 22,00 4,30 5,70 0,25 010.1B534 21,00 x 2,00
008.025224
Demande standard
25,0 x 1,3 x 1,4 25,00 22,40 4,10 5,50 0,25 010.1A058 21,95 x 1,78
008.028234
Demande standard
28,0 x 2,3 x 1,4 28,00 23,40 5,90 7,30 0,25 010.1BE19 22,00 x 3,00
008.028024
Demande standard
28,0 x 2,0 x 1,4 28,00 24,00 5,00 6,40 0,25 010.1A205 23,47 x 2,62
008.030254
Demande standard
30,0 x 1,5 x 1,4 30,00 25,40 4,30 5,70 0,25 010.1B543 24,00 x 2,00
008.030026
Demande standard
30,0 x 2,0 x 1,4 30,00 26,00 5,00 6,40 0,25 010.1A207 25,07 x 2,62
008.032274
Demande standard
32,0 x 2,3 x 1,4 32,00 27,40 5,90 7,30 0,25 010.1BE34 26,00 x 3,00
008.035304
Demande standard
35,0 x 2,3 x 1,4 35,00 30,40 5,90 7,30 0,25 010.1A294 29,20 x 3,00
008.035031
Demande standard
35,0 x 2,0 x 1,4 35,00 31,00 5,00 6,40 0,25 010.1A210 29,82 x 2,62
008.040354
Demande standard
40,0 x 2,3 x 1,4 40,00 35,40 5,90 7,30 0,25 010.1BE73 34,00 x 3,00
008.042374
Demande standard
42,0 x 2,3 x 1,4 42,00 37,40 5,90 7,30 0,25 010.1A304 36,00 x 3,00
008.042038
Demande standard
42,0 x 2,0 x 1,4 42,00 38,00 5,00 6,40 0,25 010.1A214 36,17 x 2,62
008.045040
Demande standard
45,0 x 2,3 x 1,4 45,00 40,00 5,90 7,30 0,25 010.1BE94 39,00 x 3,00
008.045041
Demande standard
45,0 x 2,0 x 1,4 45,00 41,00 5,00 6,40 0,25 010.1A216 39,34 x 2,62
008.048418
Demande standard
48,0 x 3,1 x 1,7 48,00 41,80 7,30 9,00 0,25 010.1BS39 40,00 x 4,00
008.048426
Demande standard
48,0 x 2,7 x 1,4 48,00 42,60 6,50 7,90 0,25 010.1A382 40,87 x 3,53
008.050438
Demande standard
50,0 x 3,1 x 1,7 50,00 43,80 7,30 9,00 0,25 010.1BS45 42,00 x 4,00
008.050446
Demande standard
50,0 x 2,7 x 1,4 50,00 44,60 6,50 7,90 0,25 010.1A385 44,04 x 3,53
008.052458
Demande standard
52,0 x 3,1 x 1,7 52,00 45,80 7,30 9,00 0,25 010.1BS51 44,00 x 4,00
008.052466
Demande standard
52,0 x 2,7 x 1,4 52,00 46,60 6,50 7,90 0,25 010.1A385 44,04 x 3,53
008.055488
Demande standard
55,0 x 3,1 x 1,7 55,00 48,80 7,30 9,00 0,25 010.1BS60 47,00 x 4,00
008.055496
Demande standard
55,0 x 2,7 x 1,4 55,00 49,60 6,50 7,90 0,25 010.1A388 47,22 x 3,53
008.060538
Demande standard
60,0 x 3,1 x 1,7 60,00 53,80 7,30 9,00 0,25 010.1BS72 52,00 x 4,00
008.060546
Demande standard
60,0 x 2,7 x 1,4 60,00 54,60 6,50 7,90 0,25 010.1A394 53,57 x 3,53
008.063568
Demande standard
63,0 x 3,1 x 1,7 63,00 56,80 7,30 9,00 0,25 010.1A480 55,00 x 4,00
008.063576
Demande standard
63,0 x 2,7 x 1,4 63,00 57,60 6,50 7,90 0,25 010.1A397 56,74 x 3,53
008.065588
Demande standard
65,0 x 3,1 x 1,7 65,00 58,80 7,30 9,00 0,25 010.1BS87 57,00 x 4,00
008.065596
Demande standard
65,0 x 2,7 x 1,4 65,00 59,60 6,50 7,90 0,25 010.1A397 56,74 x 3,53
008.070638
Demande standard
70,0 x 3,1 x 1,7 70,00 63,80 7,30 9,00 0,25 010.1BT02 62,00 x 4,00
008.070646
Demande standard
70,0 x 2,7 x 1,4 70,00 64,60 6,50 7,90 0,25 010.1A403 63,09 x 3,53
008.075688
Demande standard
75,0 x 3,1 x 1,7 75,00 68,80 7,30 9,00 0,25 010.1BT14 67,00 x 4,00
008.075696
Demande standard
75,0 x 2,7 x 1,4 75,00 69,60 6,50 7,90 0,25 010.1A406 66,27 x 3,53
008.080738
Demande standard
80,0 x 3,1 x 1,7 80,00 73,80 7,30 9,00 0,25 010.1BT26 72,00 x 4,00
008.080746
Demande standard
80,0 x 2,7 x 1,4 80,00 74,60 6,50 7,90 0,25 010.1A412 72,62 x 3,53
 1 2
