BECA 550 - 559
BECA 550 - 559
Données techniques
Matériaux
Téléchargement
Dimensions
Dimensions

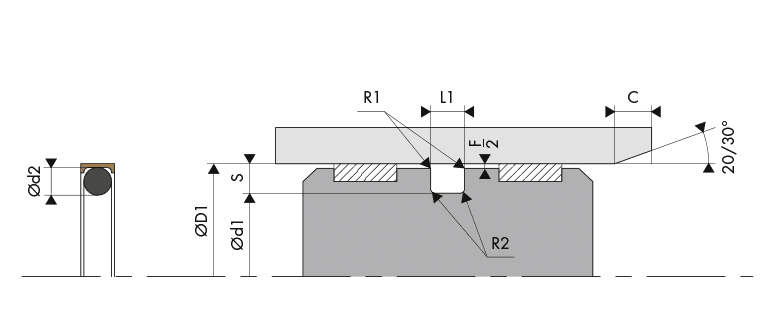

Schéma d'implantation
95 dimensions trouvées
|
550.008
|
8,00 | 5,10 | 2,40 |
|
550.009
|
9,00 | 6,10 | 2,40 |
|
550.010
|
10,00 | 7,10 | 2,40 |
|
550.012
|
12,00 | 9,10 | 2,40 |
|
550.014
|
14,00 | 9,50 | 3,60 |
|
550.015
|
15,00 | 10,50 | 3,60 |
|
550.016
|
16,00 | 11,50 | 3,60 |
|
550.018
|
18,00 | 13,50 | 3,60 |
|
550.020
|
20,00 | 15,50 | 3,60 |
|
550.022
|
22,00 | 17,50 | 3,60 |
|
550.025
|
25,00 | 18,80 | 4,80 |
|
550.028
|
28,00 | 21,80 | 4,80 |
|
550.030
|
30,00 | 23,80 | 4,80 |
|
550.032
|
32,00 | 25,80 | 4,80 |
|
550.035
|
35,00 | 28,80 | 4,80 |
|
550.038
|
38,00 | 28,60 | 7,10 |
|
550.040
|
40,00 | 33,80 | 4,80 |
|
550.042
|
42,00 | 35,80 | 4,80 |
|
550.045
|
45,00 | 38,80 | 4,80 |
|
550.048
|
48,00 | 38,60 | 7,10 |
|
550.050
|
50,00 | 40,60 | 7,10 |
|
550.052
|
52,00 | 42,60 | 7,10 |
|
550.055
|
55,00 | 45,60 | 7,10 |
|
550.058
|
58,00 | 48,60 | 7,10 |
|
550.060
|
60,00 | 50,60 | 7,10 |
|
550.062
|
62,00 | 52,60 | 7,10 |
|
550.063
|
63,00 | 53,60 | 7,10 |
|
550.065
|
65,00 | 55,60 | 7,10 |
|
550.070
|
70,00 | 60,60 | 7,10 |
|
550.072
|
72,00 | 62,60 | 7,10 |
|
550.075
|
75,00 | 65,60 | 7,10 |
|
550.078
|
78,00 | 68,60 | 7,10 |
|
550.080
|
80,00 | 70,60 | 7,10 |
|
550.082
|
82,00 | 72,60 | 7,10 |
|
550.085
|
85,00 | 75,60 | 7,10 |
|
550.090
|
90,00 | 80,60 | 7,10 |
|
550.095
|
95,00 | 85,60 | 7,10 |
|
550.100
|
100,00 | 90,60 | 7,10 |
|
550.105
|
105,00 | 95,60 | 7,10 |
|
550.110
|
110,00 | 100,60 | 7,10 |
|
550.115
|
115,00 | 105,60 | 7,10 |
|
550.120
|
120,00 | 110,60 | 7,10 |
|
550.125
|
125,00 | 112,80 | 9,50 |
|
550.130
|
130,00 | 117,80 | 9,50 |
|
550.135
|
135,00 | 122,80 | 9,50 |
|
550.140
|
140,00 | 127,80 | 9,50 |
|
550.145
|
145,00 | 132,80 | 9,50 |
|
550.150
|
150,00 | 137,80 | 9,50 |
|
550.155
|
155,00 | 142,80 | 9,50 |
|
550.160
|
160,00 | 147,80 | 9,50 |
|
550.165
|
165,00 | 152,80 | 9,50 |
|
550.170
|
170,00 | 157,80 | 9,50 |
|
550.175
|
175,00 | 162,80 | 9,50 |
|
550.180
|
180,00 | 167,80 | 9,50 |
|
550.190
|
190,00 | 177,80 | 9,50 |
|
550.200
|
200,00 | 187,80 | 9,50 |
|
550.210
|
210,00 | 197,80 | 9,50 |
|
550.220
|
220,00 | 207,80 | 9,50 |
|
550.230
|
230,00 | 217,80 | 9,50 |
|
550.240
|
240,00 | 227,80 | 9,50 |
|
550.250
|
250,00 | 237,80 | 9,50 |
|
550.260
|
260,00 | 247,80 | 9,50 |
|
550.270
|
270,00 | 257,80 | 9,50 |
|
550.280
|
280,00 | 267,80 | 9,50 |
|
550.290
|
290,00 | 277,80 | 9,50 |
|
550.300
|
300,00 | 287,80 | 9,50 |
|
550.310
|
310,00 | 297,80 | 9,50 |
|
550.320
|
320,00 | 307,80 | 9,50 |
|
550.330
|
330,00 | 317,80 | 9,50 |
|
550.340
|
340,00 | 327,80 | 9,50 |
|
550.350
|
350,00 | 337,80 | 9,50 |
|
550.360
|
360,00 | 347,80 | 9,50 |
|
550.370
|
370,00 | 357,80 | 9,50 |
|
550.380
|
380,00 | 367,80 | 9,50 |
|
550.390
|
390,00 | 377,80 | 9,50 |
|
550.400
|
400,00 | 387,80 | 9,50 |
|
550.410
|
410,00 | 397,80 | 9,50 |
|
550.420
|
420,00 | 407,80 | 9,50 |
|
550.430
|
430,00 | 417,80 | 9,50 |
|
550.440
|
440,00 | 427,80 | 9,50 |
|
550.450
|
450,00 | 437,80 | 9,50 |
|
550.460
|
460,00 | 447,80 | 9,50 |
|
550.470
|
470,00 | 457,80 | 9,50 |
|
550.480
|
480,00 | 467,80 | 9,50 |
|
550.490
|
490,00 | 477,80 | 9,50 |
|
550.500
|
500,00 | 487,80 | 9,50 |
|
550.550
|
550,00 | 537,80 | 9,50 |
|
550.600
|
600,00 | 587,80 | 9,50 |
|
550.650
|
650,00 | 637,80 | 9,50 |
|
550.700
|
700,00 | 685 | 10 |
|
550.750
|
750,00 | 735 | 10 |
|
550.800
|
800,00 | 785 | 10 |
|
550.850
|
850,00 | 835 | 10 |
|
550.900
|
900,00 | 885 | 10 |
|
550.950
|
950,00 | 935 | 10 |
